LED rear combination lamp 5 function, 12-24v Schmitz neon, 350x130mm, connector 7P, LEFT, V
VAT included
LED rear combination lamp 5 function, 12-24v Schmitz neon, 350x130mm, connector 7P, LEFT, V
231,58 € 150,52 €
VAT included
Multifunctional LED rear lamp with tail in neon look and dynamic indicator with contol unit. It is compact and ultra slim. With additional superseal connectors to connect flashing side markers, reverse work light, number plate lamp and outline marker lamp is a good substitution for Aspock Europoint 2 Schmitz version.
In Stock

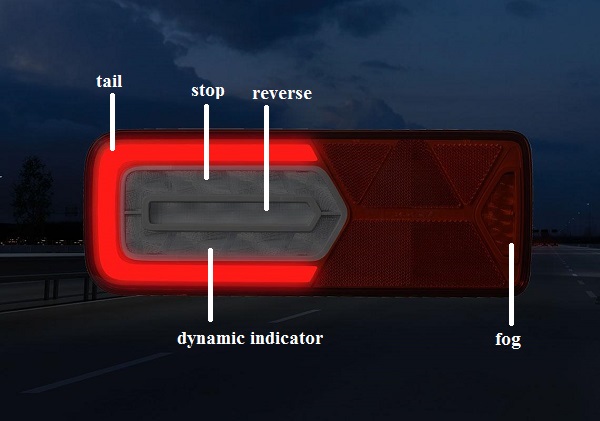

Function: LED tail, LED stop, LED dynamic indicator, LED fog, LED reverse, Triangle reflex reflector
Mounting position: left
Voltage: 12-24v
Measures (length, height, width) : 350x130x40mm, bolt to bolt distance 152mm
Connection: 7 pol AMP 1.5 connector. Not enclosed.
Additional connectors: 1-end outline marker (0.5A, max 15w), 2-number plate lamp(0.5A, max 15w), 3-reverse(1A, max 35w), 4-flashing side marker(0.5A, max 15w).
Approval: ADR, ECE E2 16027, EMC E2 10R-0516057.
Manufacturer: Vignal, France
Type: LC12 LED
Article number: 161280 ( LC12 LED, 3660996019102)
Suitable connector: D11868X
Suitable connector for additional loads: 2 pol superseal female (K2PŽ)
Lamp for right side: 161290
Excellent direct replacement/upgrade for
aspock europoint II schmitz bulb version: 256030507, 26 6030 507
aspock ecoled 2: 25-4121-041, 25 4121 041, 83840643, 127553928, 127553942
