End outline marker lamp LED Neon, MINI-72mm, 12-24v, cable 1m+CLICK IN, LEFT= RIGHT, W

Price: 29,51 €     20,65 €

VAT included

End outline marker lamp LED Neon, MINI-72mm, 12-24v, cable 1m+CLICK IN, LEFT= RIGHT, W

29,51 €     20,65 €

VAT included

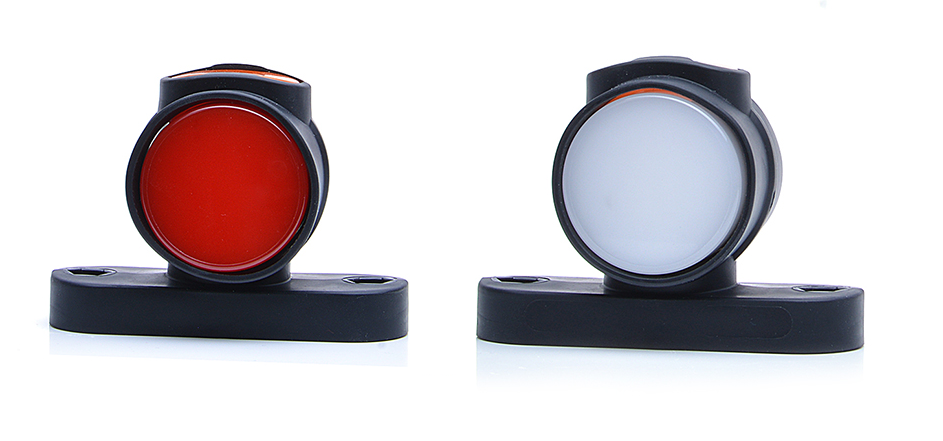

Hi quality end outline marker for surface mount  with white, red and yellow LED illumination in neon effect. Easy and efficient connection with cable length 1.5m and CLICK IN connector for flat cable 2x1.5mm.

In Stock

Add to basket

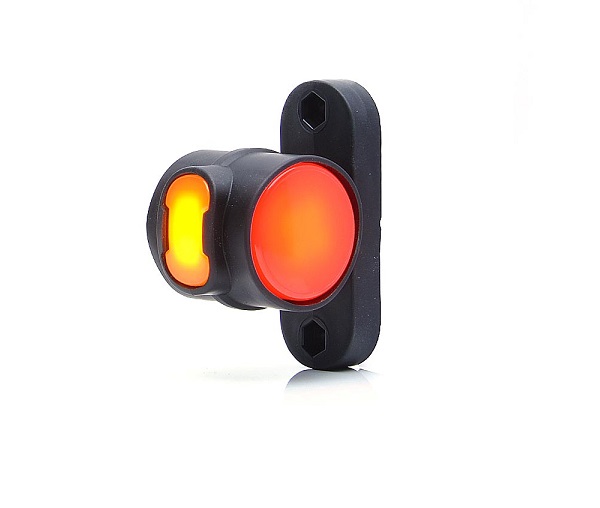

Function: white+red+amber, all in neon effect

Mounting position: left, right

Voltage: 12v-0.5w, 24v-1w

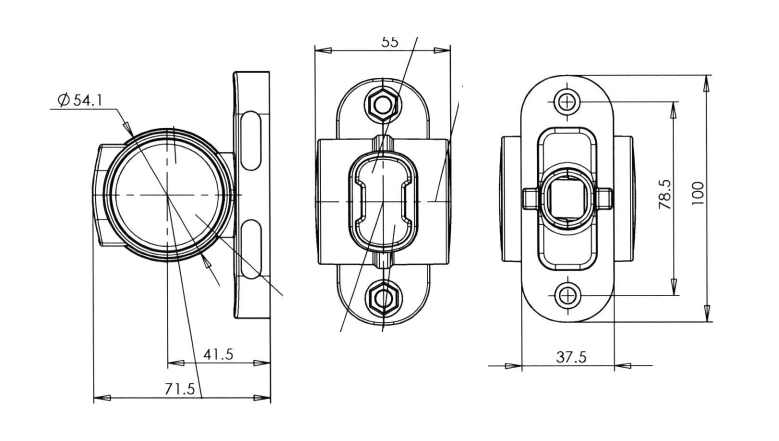

Measures (length, height, width) 72x55x100mm. Bolt to bolt distance: 79mm.  More details on picture.

Cable: high quality pur cable length 1m with click in connector

Connectionpossible on flat cable 2x1.5mm

ApprovalE20 1687, 10R-05 4118, ADR, EMC

ManufacturerWas

Type: W148.4

Article number:  W1484GABMINI

Other items for wiring:

https://www.gepard.si/shop/cables-and-wiring-accessories/cables/flat-cable-2x15mm-24v-for-click-in-system-running-meter-eng.html#.Y7qis33MLIU

https://www.gepard.si/shop/cables-and-wiring-accessories/cables/end-cap-for-flat-cable-2x15mm-v-eng.html#.Y7qixn3MLIU
