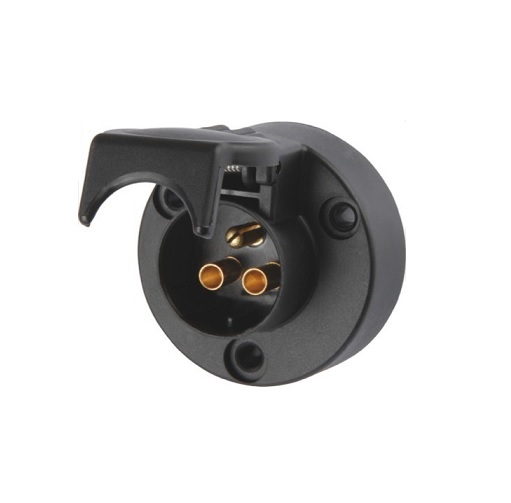

3 pin socket 6-24V, fi 65mm, screw contacts, style7pold, EJH

In stock
Price: 14,21 €     10,66 €

VAT included

3 pin socket 6-24V, fi 65mm, screw contacts, style7pold, EJH

14,21 €     10,66 €

VAT included

Standard 3 pin socket with screw pin connection for various trailers and vehicle application up to 24v and max 25A.

Has 1 male and 2 females contacts.

In Stock

Add to basket

Voltage: 6v, 12v, 24v (max 25A)

Housing: black syntetic plastic. Fixing with 3xM5 bolts.

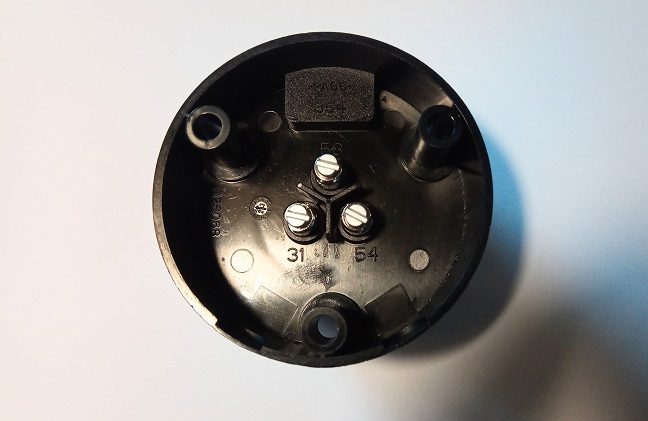

Wiring: screw contact 3x

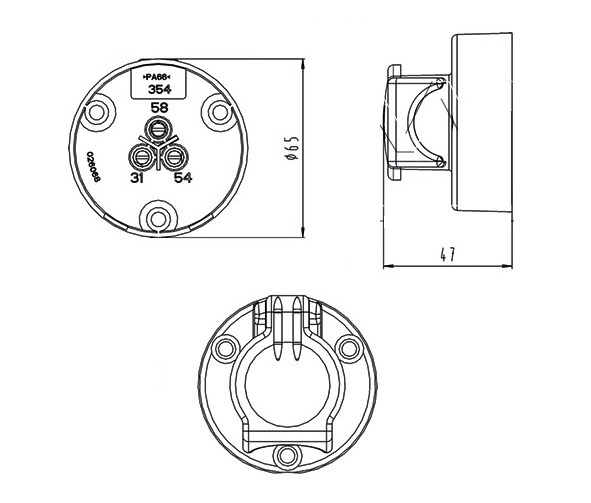

Measures:  diameter 65mm, height: 47mm

Standard: DIN/ISO: 1496

Brand: Hella or similar

Item number: H1933031

Complementary articles:

3 pin plug: H263031
