3 pin female socket, 6-24v, with cable gland, EJ

In stock
Price: 11,25 €     9,00 €

VAT included

3 pin female socket, 6-24v, with cable gland, EJ

11,25 €     9,00 €

VAT included

3 pin female socket usually used on tractors and agriculture vehicles.

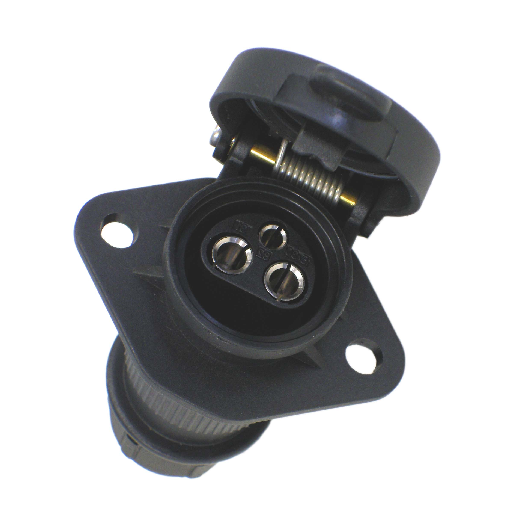

With cable gland and protective cover.

In Stock

Add to basket

Voltage: 6-24v iup to 25A-cable 2.5mm² and 1x 5A(small contact)

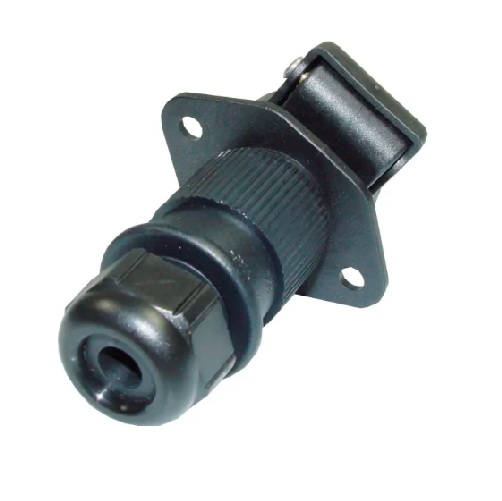

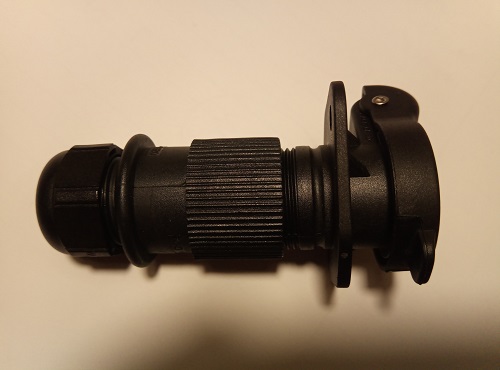

Housing: black pvc (GFK). Cable gland for cable diameter 6-10mm

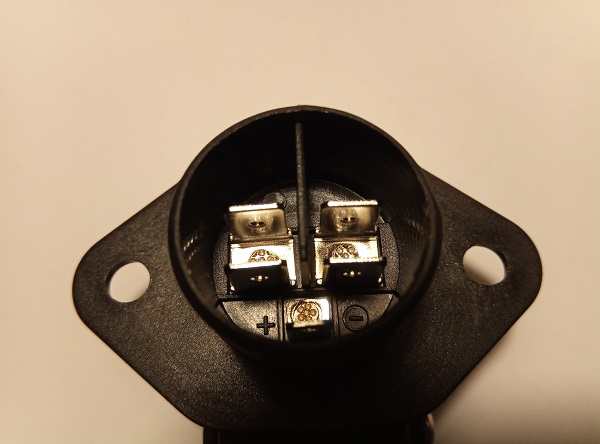

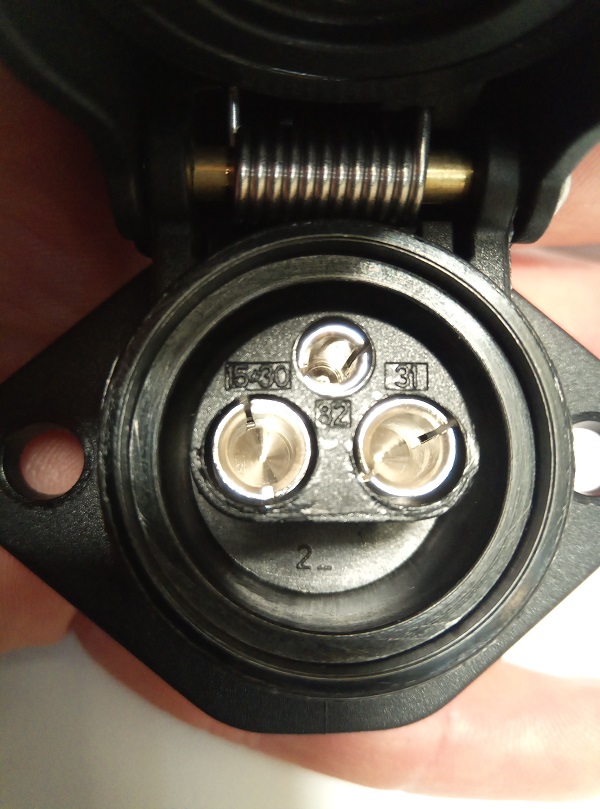

Wiring: female fastoon 6.3mm(2x+2x) in 4.8mm(1x). Wiring diagram at picture.

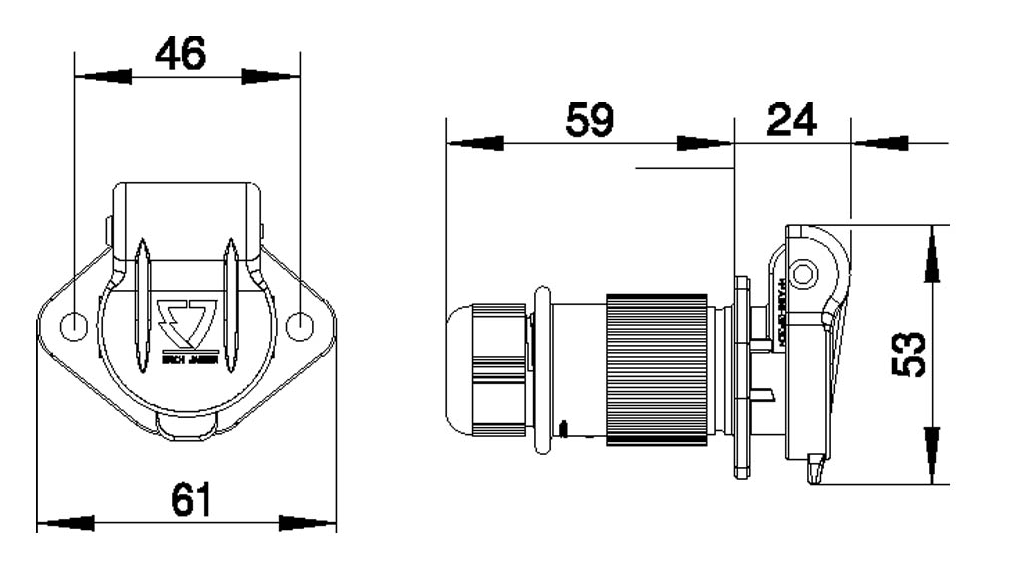

Measures:  length 83mm, max width 61mm. Bolt to bolt fixation: 46mm.

Standard: DIN/ISO: 9680

Protection: IP54, IPX4

Brand: Aftermarket

Item number: 442002000EJ
