3 pin female socket, 6-24v, EJ

In stock
Price: 9,17 €     7,80 €

VAT included

3 pin female socket, 6-24v, EJ

9,17 €     7,80 €

VAT included

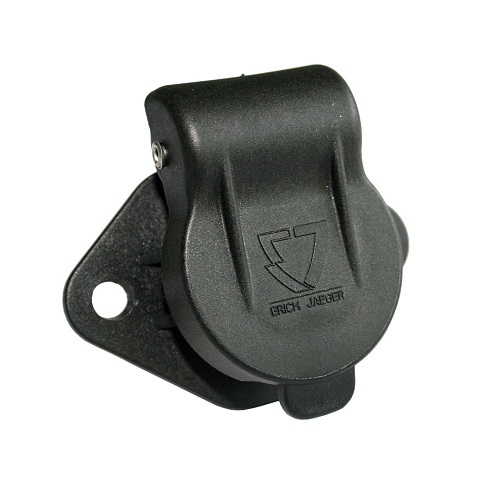

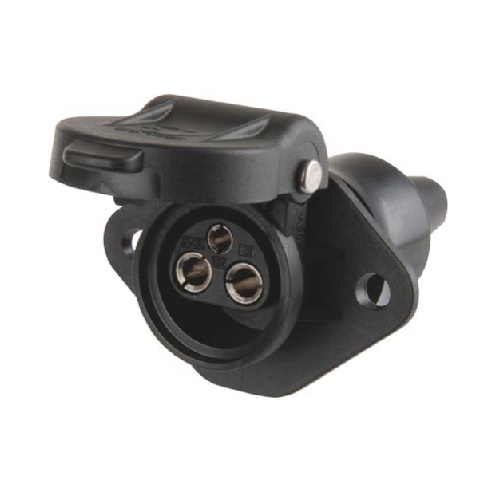

3 pin female socket usually used on tractors and agriculture vehicles.

With protective cover.

In Stock

Add to basket

Voltage: 6-24v iup to 25A-cable 2.5mm² and 1x 5A(small contact)

Housing: black pvc (GFK).

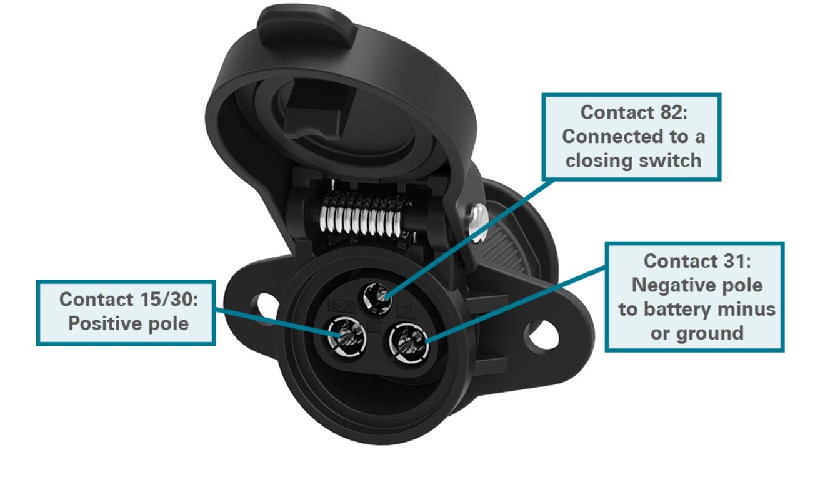

Wiring: female fastoon 6.3mm(2x+2x) in 4.8mm(1x). Wiring diagram at picture.

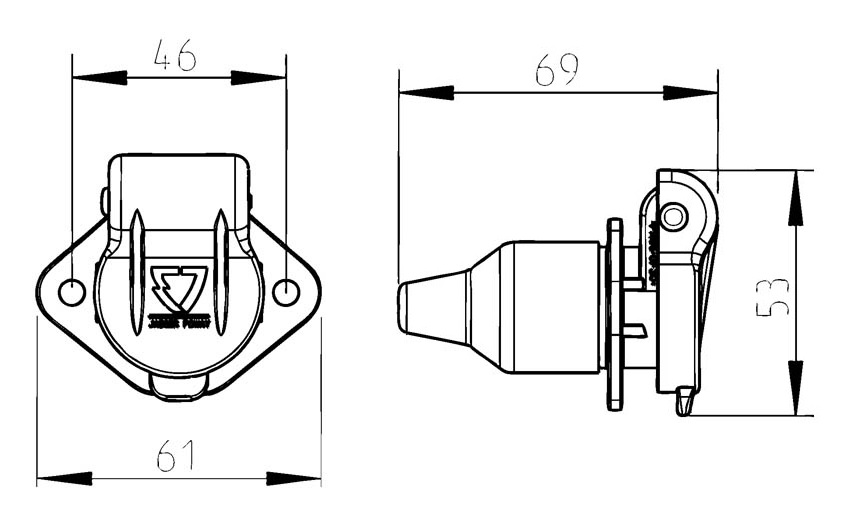

Measures:  length 69mm, max width 61mm. Bolt to bolt fixation: 46mm.

Standard: DIN/ISO: 9680

Brand: Aftermarket
