Cable 2 core with CLICK IN (24v) connector, 0.5m

In stock
Price: 2,67 €     2,27 €

VAT included

Cable 2 core with CLICK IN (24v) connector, 0.5m

2,67 €     2,27 €

VAT included

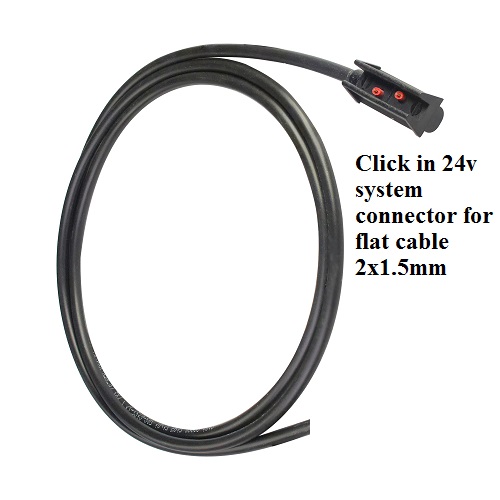

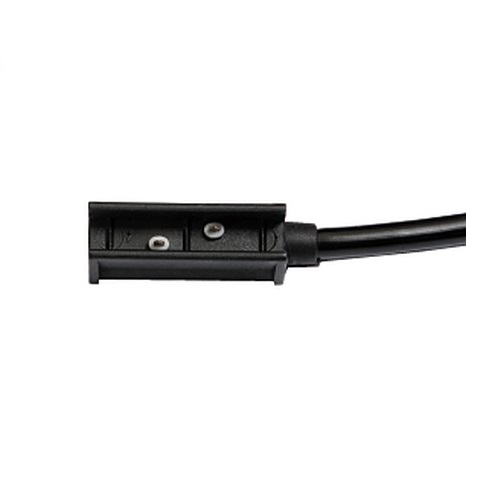

2 pol cable length 500mm with CLICK IN "24v" connector at one side is useful when the lamp we would like to connect this way does not have a cable with connector.

This connector fits flat cable 2x1.5mm.

Connector cap need to be ordered separately.

In Stock

Add to basket

SPECIFICATION:

Type: 2 core cable 500mm with CLICK IN connector

Number of cores+cross section: 2x 0.75mm2

Conductor material: cooper

Core insulation colours: brown, blue

Core insulation diameter: 2.05mm

Nominal voltage: 6v, 12v, 24v

Nominal current:  4A, 24v

Outer sheath: PVC black colour

Cable diameter: 5.5mm

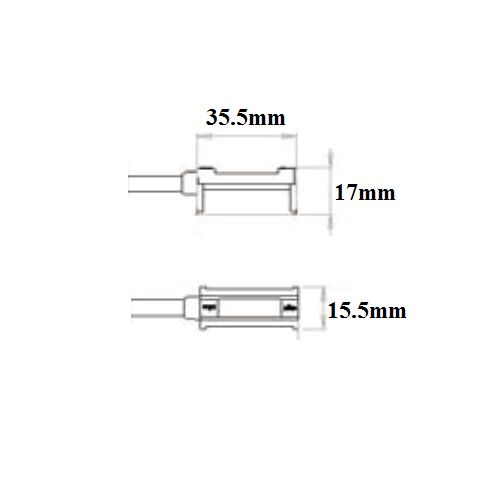

Click in connector measures (length x height x width): 17 x 35.5 x 15x5mm

Brand: Jokon

Article number: H22001050

Reference: 68 5000 014, 68-5000-014

Connector cap: 155971014, 15-5971-014
